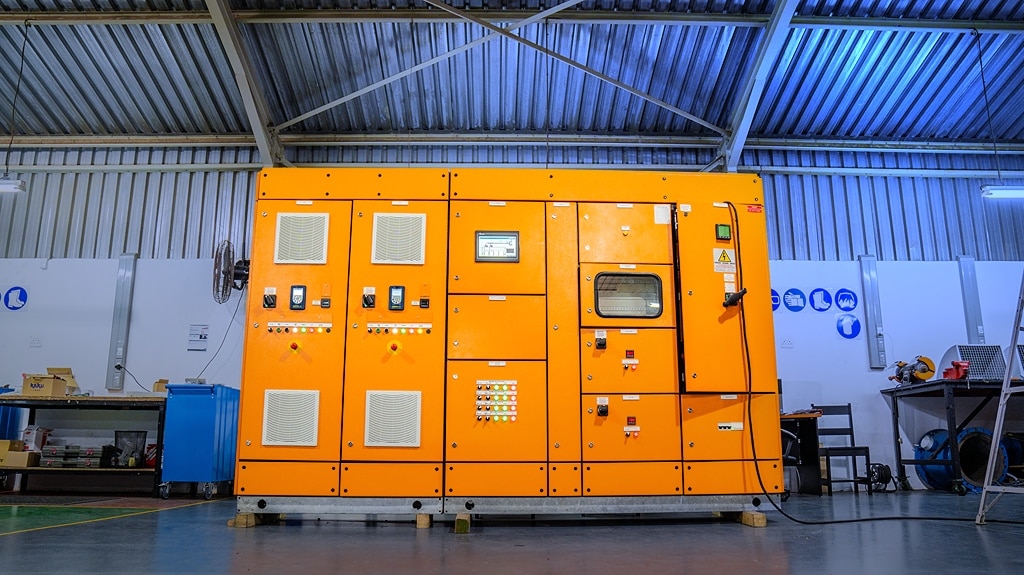

Calibration of testers used during Quality Control Plan (QCP) checks on Motor Control Centres (MCCs) is far more than a routine task – it’s a cornerstone of electrical safety, quality assurance, and compliance. Without properly calibrated instruments, even the most carefully executed tests can produce unreliable results.
Here’s why regular calibration is essential:
1. Ensuring Accurate Measurements
Testers that drift out of calibration can produce false readings – either higher or lower than the actual value. Accurate readings are vital when measuring:
- Insulation resistance
- Voltage levels
- Current draw
- Continuity
Precision in these measurements ensures correct assessment of system safety and functionality, preventing misinterpretation that could lead to unsafe installations or premature failures.
2. Maintaining Compliance with Standards
QCP checks are conducted in line with strict industry standards such as IEC 61439, UL 845, NEMA, and other project-specific QA/QC frameworks. These standards require the use of calibrated test instruments to validate that systems meet defined safety and performance criteria.
3. Safeguarding Personnel and Equipment
An uncalibrated tester may fail to detect critical issues like ground faults, insulation breakdowns, or overloaded circuits. Such oversights can result in severe safety hazards during commissioning or operation. Calibration ensures that risks are identified early, protecting both personnel and equipment.
4. Enabling Traceability and Audit Readiness
Calibrated instruments are supplied with certificates of calibration that are traceable to recognised national or international standards such as ISO/IEC 17025. These certificates provide verifiable proof of accuracy, supporting audit trails, project documentation, and regulatory compliance during inspections.
5. Avoiding Costly Errors and Rework
False readings from uncalibrated testers can cause unnecessary repairs, commissioning delays, and even equipment damage. Reliable data from calibrated testers helps teams make accurate decisions, reducing costly downtime and ensuring projects stay on schedule.
6. Sustaining Equipment Reliability
Regular calibration also helps detect measurement drift or internal faults within the test instruments themselves. Identifying these issues early helps maintain the integrity and longevity of both the tester and the systems being tested.
7. Aligning with Quality Management Systems
Under recognised quality frameworks such as ISO 9001, the periodic calibration of inspection and test equipment is a mandatory requirement. Using uncalibrated tools can lead to non-conformances during internal or external audits, potentially compromising project certification and reputation.
Calibration isn’t just a compliance requirement, it’s an investment in accuracy, safety, and reliability. It strengthens trust in every QCP verification process, ensuring that the MCC delivered performs exactly as intended from the first day of operation.
